老化房
标准规格型号选配项目产品视频根据客户要求设计,非标定制不同规格
老化房,又叫老化室、烧机房,是针对高性能电子产品仿真出一种高温、恶劣环境测试的设备,是提高产品稳定性、可靠性的重要实验设备、是各生产企业提高产品质量和竞争性的重要生产流程,该设备广泛应用于电源电子、电脑、通讯、生物制药等领域。
老化房简介
  CLM型老化房,又叫高低温试验室或温升房,是针对高性能电子产品(如:计算机整机,显示器,终端 机,车用电子产品,电源供应器,主机板、监视器、交换式充电器等)仿真出一种高温、恶劣环境测试的设备,是提高产品稳定性、可靠性的重要实验设备、是各生产企业提高产品质量和竞争性的重要生产流程,该设备广泛应用于电源电子、电脑、通讯、生物制药等领域。根据不同的要求配置主体系统、主电系统、控制系统、加热系统、温度控制系统、风力恒温系统、时间控制系统、测试负载等,通过此测试程序可检杳出不良品或不良件,是客户迅速找出问题、解决问题提供有效手段,充分提高客户生产效率和产品品质。,也是针对于开关电源、手机充电器 、电池、LCD、主板机、扫描器、监视器、介面卡等做负载或温度老化测试的一种设备,此设备外框架构采用保温库板隔间组合而成,配上主配电箱、测试架、温度控制器、定时器、各种电器开关、加温电热器、盘架、拉门、循环风机、排风机、插座等设备模拟出一种高温、恶劣环境(40℃ -70℃±5℃、电源ON-OFF动作等),让产品在此环境中接上模拟负载通电运作,测试时间可在0-99.9小时内任意设定,通过此测试程序可查出不良品或不良零件,是制程、品管必备之设备。由于老化房的性能及环境必须保证产品所需要的温度、电源质量、负载量、工作时间及操作人员的安全、习惯等要求,所以,一套合格的老化设备,应该是一套安全可靠,高效节能、功能齐全和具有可扩充性的设备。
产品用途:广泛应用于电源电子、电脑、通讯、生物制药等领域。

产品介绍
老化房分类

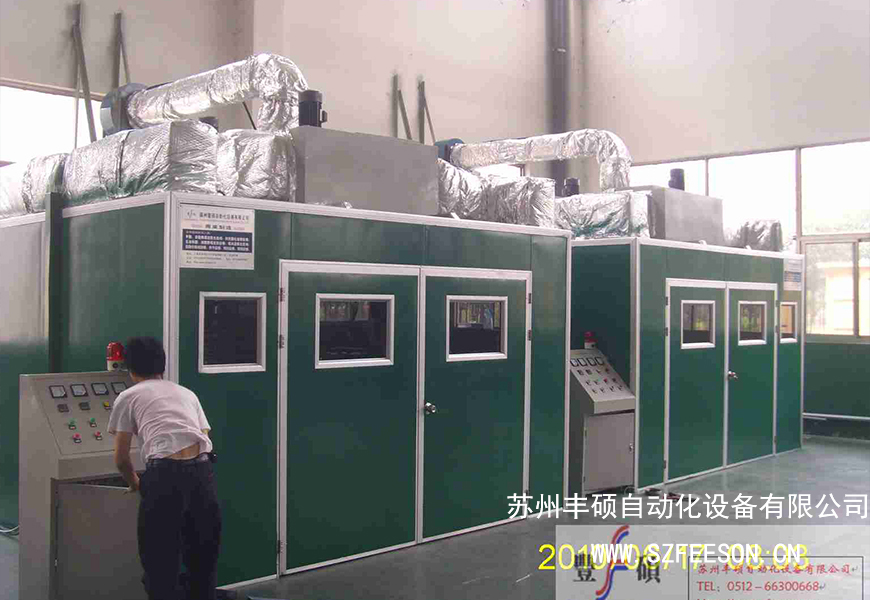

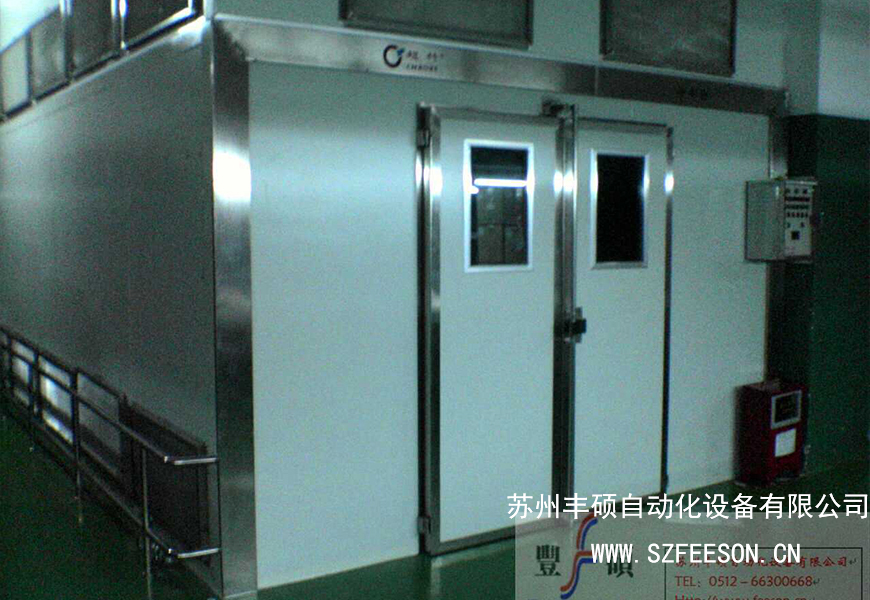

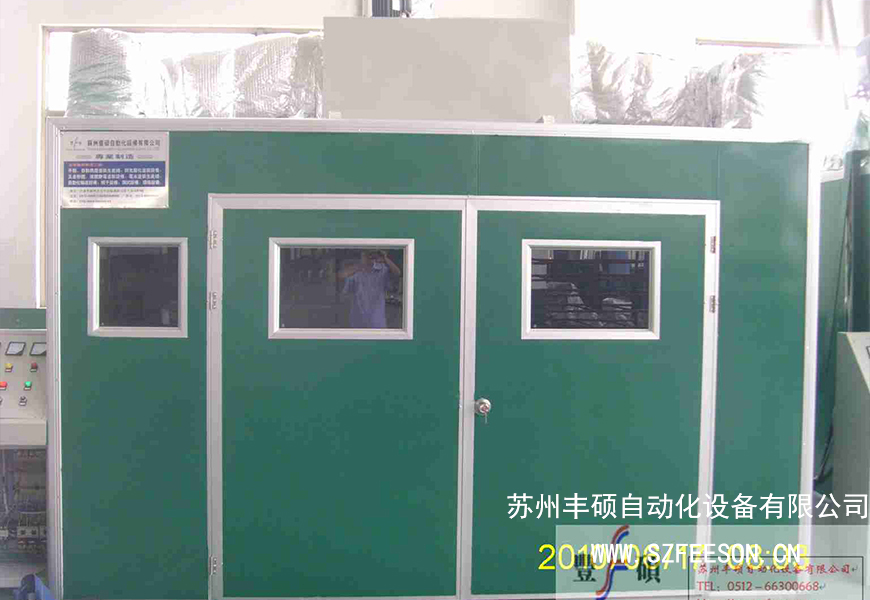

一,房间隔离式测试系统型
  房间隔离式老化房房间尺寸均根据客户要求设计,进出门采用保温推拉门或双开保温门,另根据需要可设置观察窗,方便在室外观察到室内产品测试情况。如需电源提供则在方便操作的位置安装电源插座,以满足产品老化测试时的需要,特点:对产品的样式与台车的样式要求低,活动空间大,结构简单,成本较低。
二,Chamber隔离式测试系统型
  Chamber隔离式老化房房间尺寸均根据客户要求设计,测试区采用推拉门及大视角玻璃视窗,如产品需要电源提供,则采用国内插座固定在产品架线槽上或固定在测试区方便操作的位置。特点:可使操作人员在不用进入老化房[1]测试区内就可以上下测试产品并可测试过程中一目了然的看到产品的B/I状况;免去操作人员进入老化房室内经受房体过热之苦、更能节约能源。
三,移动式测试系统型
  移动式老化房在本公司直接加工为成品(如需求体积太大既在客户现场拼装而成),台车尺寸均根据客户要求设计。适合于产量少或研发试验产品小批量测试,,其它部分与Chamber测试系统相似,特点:占地面积小,可以随时搬迁移动。
老化房详细资料
1.主要技术参数:
  1.1 温度范围:RT+10~400℃
  1.2 温度波动:±0.5℃;
  1.3 温度偏差:精度±2℃(可根据客户要求设计精度,在一定条件下高可以做到±1℃)
  1.4 房内尺寸:温度可以订制
  1.5 运行方式:温度可调,恒定运行或程序运行(可选触摸屏式程序运行)
  1.6 安装电源:AC~380V;50 Hz;
  1.7 噪音大小:≦65分贝
  1.8产品型号: CLM-LHF-010、CLM-LHF-020、CLM-LHF-030、CLM-LHF-040、CLM-LHF-050
2:室体结构及用料说明:
  2.1 墙体材料:库体采用双面彩钢保温库板(EPS板、聚氨酯板或岩棉板)拼装而成,板材厚度由老化房本身的需求和客户的要求双向进行选择,库板板材厚度有50mm、60mm、70mm、100mm等规格,彩钢板的厚度有0.326mm、0.5mm等规格,整个库体采用钢架结构,铝型材等固定支撑,库体内外采用铝型材或不锈钢板包边;(地面处理部分根据客户要求),接合处打密封玻璃胶,有效保证房间的密封性与美观性。(房体材料的燃烧性能符合《建筑材料燃烧性能分级》B2级的规定。
  2.2 门洞与视窗设计:根据实际要求;
3:风力恒温系统;
  风力管道系统符合《通风与空调工程施工质量验收规范》GB50243-2002标准,通常采用循环系统、加热系统和超温排风系统组成。循环系统、超温排风系统、加热系统及配套的风道系统安装于老化房顶部,不占用其它空间,,循环系统采用循环风机和配套风管进行循环,可保证测试区内温度均匀,加热系统采用电热器加热,加热器放置于老化房顶上循环风道中,四周加防火隔热材料。采用PLC温度模块或PID仪表控制,温度到达产品所需要温度后,根据室内温度波动自动调节加热器功率大小配合保温库板的保温性,使室内温度准确稳定在所设定温度数值可在指定的时间内内将室温加至设定温度,当温度升至设定值时加热器停止加热.加热器具有过热保护装置(EGO),如客户自身产品发热则采用过热排风系统,发热量小采用电动百叶自动负压排风,发热量大则采用低噪音风机排风,用变频器控制其转速。
  循环控温过程:当开机时加热器开始加热 温度到达设定值时加热器停止加热 随着时间的推移产品区温度会逐渐上升当温度超过设定上限时 排风系统开始动作将产品区过热气体排室外。变频器会控制室外排风机进行运转,当温度下降至设定值下限时风机停止排风,排风系统同时关闭。循环系统在老化产品的过程中始终保持循环状态,以保证温度均衡。整套系统动作具有性能稳定,控制准确、温度波动小,均衡度高、噪音小等特点。
  噪音处理:采用低分贝的高品质循环风机,风管采用3mm厚石棉包裹,既保温又降低噪音,根据声学原理,所有动态部位采用帆布、弹簧进行软接处理,力求把噪音降到更低标准。
4:老化房控制系统;
  采用两级PID调节加热量,实现对测试区(产品区)温度的准确控制,同时温度控制器可以对测试区任意温度进行滚动实时显示,有独立负载的还可以对负载区的温度进行监控,防止负载区温度过高,方便客户准确掌握测试区温度情况。控制系统还设定了各种保护功能,有超温报警保护、风机故障报警保护、无风报警保护、室内烟气感应报警保护等,完善的保护功能确保了老化房能长期稳定无故障运行。(可选PLC来控制)
5:产品测试架:(可选)
  产品测试架通常根据客户产品和要求进行设计制。如需负载,则做相对应的负载框架配套生产,一般测试架的设计要求结构稳固合理,操作方便,外形美观、满足功能等特点,较大限度的满足客户的要求。
6:控制系统设计以及安全保护措施:
  6.1电控设计参照《低压配电设计规范》GB50054-95,《供配电设计规范》GB5002S2-95,《电气装置安装工程接地装置施工及验收规范》GB50169-92,使电控设计标准化。
  6.2控制系统集成老化功能设计。设计功能控制电柜,老化所需时间、温度、各类操作开关可在一个控制电柜上操作;电柜面板设计美观、操作简单。
  6.3老化过程可全自动控制,具有部分异常自处理功能,让操作自动化、简单化。
  6.4具有多重保护功能,安全可靠。
  a.电热防干烧,风机故障或风管内温度过高时自动切断循环系统电源,同时警报器报警。
  b.电加热与风机联动设计,风机未能启动时加热器无法单独启动,在关闭时电热与循环风机同时关闭,防止电热因干烧而损坏。
  c.加热器连接采用耐高温线材,300OC不燃烧。
  d.室内安装防爆型照明灯,提高灯泡寿命,防止灯泡爆破。
  e.库体采用难燃保温材料,保温性能好,安全系数高。
  f.超温声光报警功能:老化过程中出现超温状况,则亮红灯,蜂鸣器响起。
  g.烟雾报警功能:室内装有烟感报警器,预防在老化产品的过程中某种原因使产品燃烧而报警,在报警时自动关闭老化房电源。
老化房成本的决定因素
  老化房成本的决定因素
  老化房价格组成由下面几个因素组成
  1: 房间大小(房间大小决定风机选型,风机数量,风管大小)
  通常市面有轴流风机、离心风机、风柜来制作
  轴流风机安装于老化房顶部,在天花上装根据风机的数量装相应的百叶窗口,采用上面出风上面回风的概念,此方法造价低廉,温度均匀度可控性不高,因为热气是从下往上的
  离心风机安装于老化房顶部,再根据风机的功率以及房间的大小设计相应的风管数量,每条风管连接至室内底部,在每条风管上安装2个双层百叶出风口,出风口可以调节出风的方向。然后再从顶部的回风口出风进行循环。一般房间不是很大的老化房采用离心风机主。
  风柜主要是老化房的房间太大、跨度过宽、温度均匀度要求过高才用,如果房间很大的话用离心风机数量相应增加,噪音将会很大。此造价成本很高,
  2:温度范围(温度范围不同选用材料不同)
  目前市面上常用的保温材料是高密度硬质聚氨酯发泡。外表为304不锈钢,它的高耐温为85度,硬度好,型质佳,尤其是大尺度的老化房,必须采用该材料,拆装也比较容易,便于老化房搬迁。但是价格相对较贵,但一般专业的公司都会使用。
  另外EPS彩钢板主要用于常温到60度范围的老化,EPS彩钢板俗称泡沫板,不阻燃,它不符合《建筑材料燃烧性能分级》B2级的规定,在60度以下长期使用没有问题,岩棉彩钢板是在老化温度为60度以上但是该两种材料,硬度较弱,厚度较厚,也比较沉重,大型的老化房,有塌陷的危险,也不利于拆装搬迁,但价格相对便宜。很多非专业的公司,从生产成本考虑,会选择,但售后也会相当麻烦。
  3:需要老化的产品以及产品功率(产品的不同涉及到产品是否发热,功率涉及到里面供电的配置)
  老化产品的功率:在老化房内,要给产品的老化架供电,功率涉及到线材的大小和数量,如果产品发热涉及到线材采用民用或军用线材。
  4:温度均匀度要求
  老化房的温度一般40度的时候±1℃,50的时候±3℃,60℃
  以上为±5℃,如果60℃以上均匀度要求过高的话可以采用PLC实行多点控制或是以子母机的方式来控制。
  5:常做老化的温度点和产品的总功率(涉及到排风系统,排风是根据房间大小温度范围和产品的功率来恒定在谋个温度点,当产品发热过高的时候排风机运转保证温度控制在设定的温度)
  老化房的常做温度点:涉及到排风系统,根据老化房内产品的总功率(发热功率),然后根据需要很定的温度,通过相应的公式算出排风机的功率,排风管的大小。目前市面上先进的是热风循环技术,这种温度均匀性很好。
老化房的特点
  1. 温度控制准确,精度高。由于采用了独特的风道系统设计及电控系统,能保持整个房间温度高度均匀性,大大高于同类产品。
  2. 房间设定温度范围广,连续可调。在常温+5℃--60℃(常温+5℃--80℃)范围内可任意设定。若客户特别要求,可设计更高温度产品。
  3. 系统保护功能齐全,能确保安全长期稳定无故障运行。
  4.试验室结构设计先进合理,配套产品和功能元器件具有先于同行的先进水平,能够适应长期、稳定、安全、可靠的生产需求。能够满足用户为从事上述用途的加工生产要求,且使用、操作、维修方便,使用寿命长,造型美观,有良好的用户界面,使用户的操作和监测都更加简单和直观。
  5.设备主要部件选用国内外知名品牌厂家的优质产品,确保整机的质量和性能
  6. 外形美观,施工方便,施工周期短。
注:本试验设备禁止
  1:易燃、爆炸、易挥发性物质试样的试验及储存
  2 :腐蚀性物质试样的试验及储存
  3:生物试样的试验或储存
4:强电磁发射源试样的试验及储存
